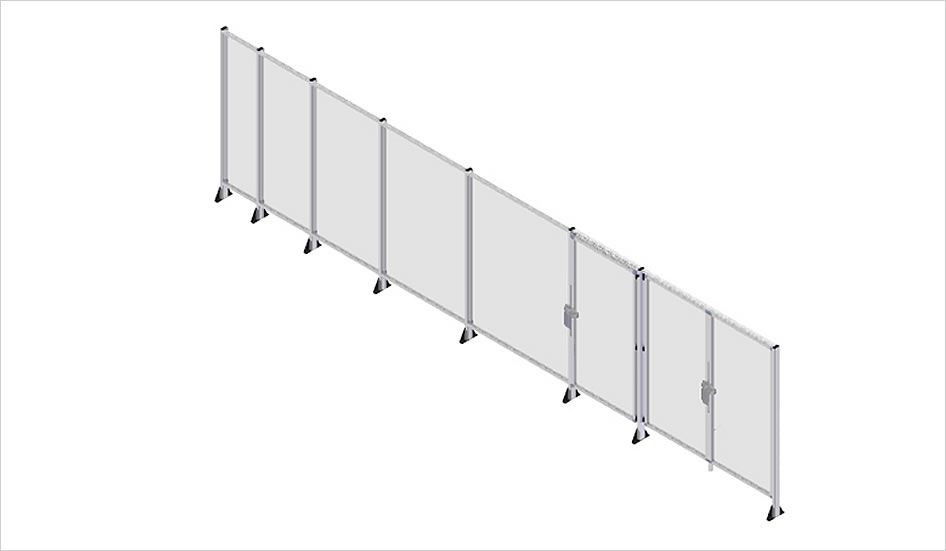

Direct Guard 40x40 E

Art. no. EX-01070

The individual panels in Direct Guard 40x40 E made from Clamp Profile 8 Economy are screwed directly together. Stable Angle Brackets connect the Clamp Profiles and ensure the structure is exceptionally stable.
The guard can be configured as a closed wall or a wall with an integrated door. Double doors can also be implemented.

Back to Overview

(Login required)

Downloads

CAD data (ZIP)

518 KB

3D (PDF)

256 KB

Drawing (PDF)

700 KB

Part list (Excel)

49 KB

Part list (PDF)

11 KB

Similar application examples

Sliding door element

When the situation calls for something more, the C-Rail System from item can be used to create sliding doors up to 6,000 mm wide. Despite their imposing size, the doors exhibit...

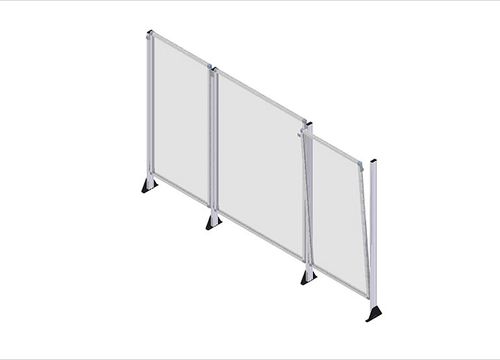

Guard E
